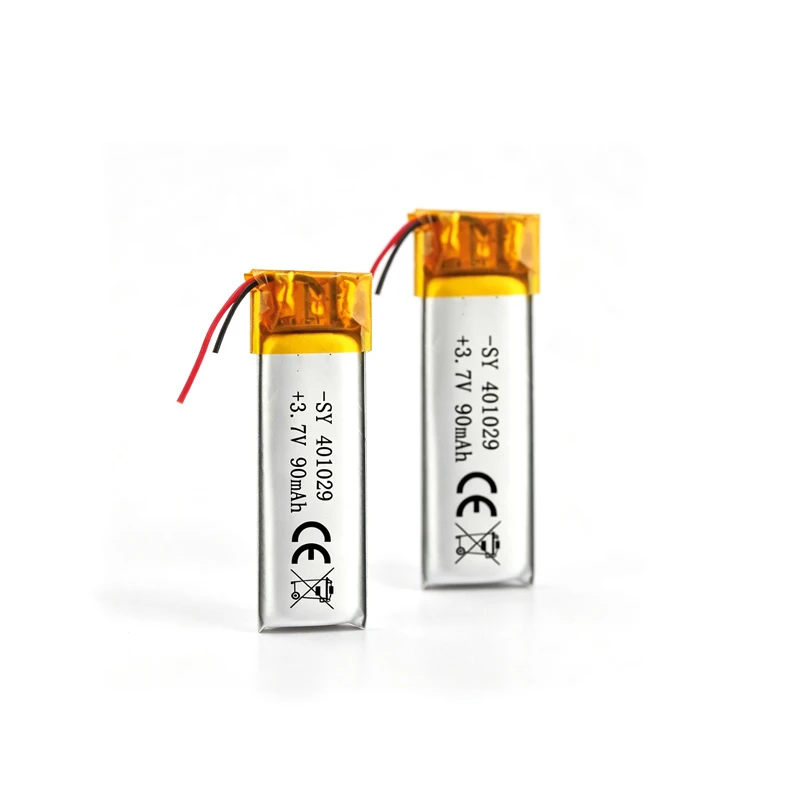

401029-90mAh Lithium-lon Batteries Polymer Lithium-lon Batteries
| Item Name | Specifications | ||
| Batteries | 3.7v 90mah lipo battery | ||
| Charge voltage | 4.2V | ||
| Nominal voltage | 3.7V | ||
| Nominal capacity | 90mAh 0.5C Discharge | ||
| Charge current | Standard Charging:0.5C Rapid charge: 1.0C | ||
| Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C | ||
| Charging time | Standard charge:3.5hours(Ref) Rapid charge: 1.5hours(Ref) | ||
| Max.charge current | 1.0C | ||
| Max.discharge current | 2.75V(0.5C) | ||
| Discharge cut-off voltage | 2.75V(0.5C) | ||
| Operating temperature | Charging: 0°C ~45 °C Discharging: -20℃~60℃ | ||
| Storage temperature |
|
||
| Dimension |
|
||
| Drop Test | The cell is to be dropped from a height of 1 meter twice onto concrete ground. No fire, no leakage | ||
| Cycle life | ≥500 times |
