Introduction

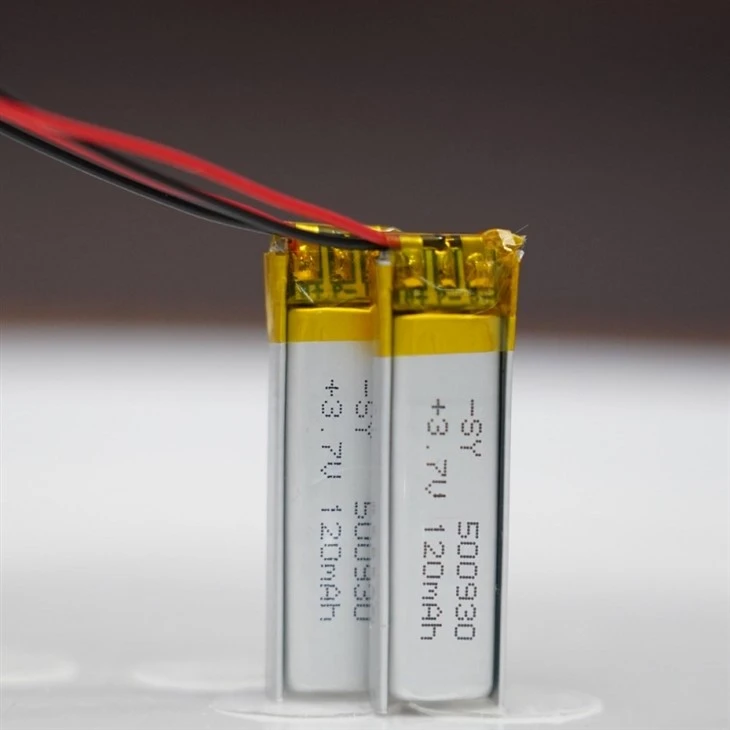

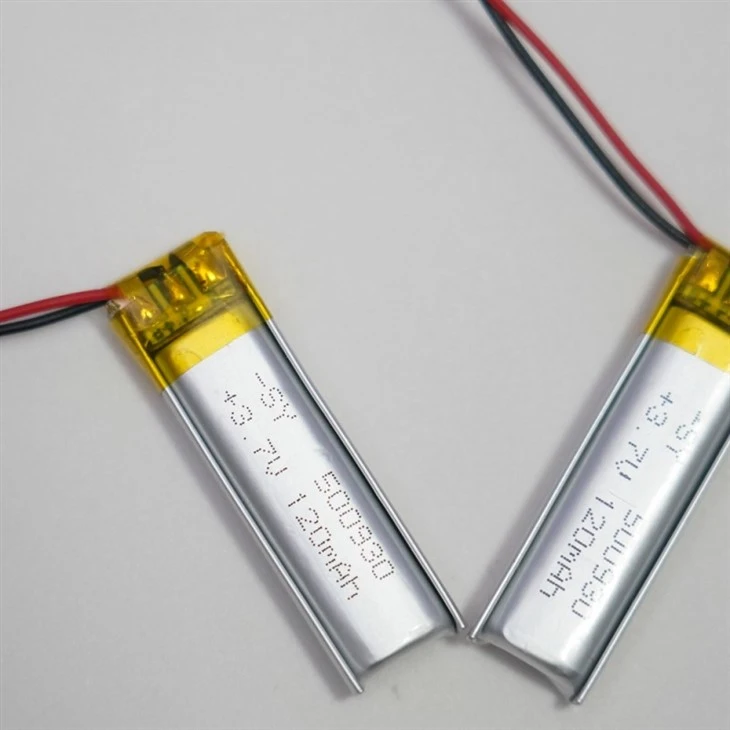

The lithium-ion polymer battery 3.7V 120mAh is a small, lightweight rechargeable battery suitable for Bluetooth headsets, mini electronic toys, and portable small electronic devices.
Advantage
High Energy Density
The 120mAh battery provides sufficient power in a compact size.
High Safety
Equipped with short-circuit, overcharge, over-discharge, and drop protection designs, ensuring the battery is safe and reliable during daily use.
Long Lifespan
The battery uses high-quality cells, with a cycle life of hundreds of cycles, far exceeding that of ordinary nickel-metal hydride or alkaline batteries.
Specification
|
Items |
Specifications |
|
Batteries |
3.7v 120mah lipo battery |
|
Charge voltage |
4.2V |
|
Nominal voltage |
3.7V |
|
Nominal capacity |
300mAh 0.2C Discharge |
|
Charge current |
Standard Charging: 0.5C Rapid charge: 1.0C |
|
Standard Charging Method |
0.5C CC (constant current) charge to 4.2V, then CV (constant voltage 4.2V) charge till charge current decline to ≤0.05C |
|
Charging time |
Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.) |
|
Max. charge current |
1.0C |
|
Max. discharge current |
1.0C |
|
Discharge cut-off voltage |
2.75V(0.2C) |
|
Operating temperature |
Charging: 0 °C ~45 °C Discharging: 0 °C ~45 °Carging: 0 °C ~45 °C |
|
Discharging: Storage temperature0 °C ~45 °C |
-10°C~ +45 °C |
|
Dimension |
Length: 50±2mm (not including tabs) Width: 20±0.5mm Thickness:10±0.2mm |
|
Drop Test |
The cell is to be dropped from a height of meters twice onto concrete ground. No fire, no leakage |
Why Choose Us
Large-Scale Production
Daily output of 600,000 units, annual production of 120 million Li‑Po batteries, ensuring a stable supply for bulk orders.
Strong R&D Team
800+ employees with 40+ engineers, core members have 10+ years of industry experience, providing product development and technical support.
Integrated Industrial Park
80-acre facility with 200,000㎡ automated clean workshop, combining R&D, production, and sales.
Certifications & Patents
We hold CCC, ISO9001, KC, UL, RoHS compliance, plus invention and utility model patents.
FAQ
Q: Do you have current samples in stock?
A: We usually have battery cells in stock. Battery packs need to be assembled, as different customers have different requirements. Even if the voltage and capacity are the same, other parameters may vary. However, we can finish your samples quickly once the order is confirmed.
Q: What's the delivery time for mass production?
A: Usually 25–30 days. It depends on the order quantity, materials, battery cell model, and other factors. We suggest confirming the delivery time on a case-by-case basis.
Q: What kind of certificates can you provide for the battery?
A: For some 3.7 V Li-Po batteries, we already have various certificates. For custom-designed products, there may be no existing certificates. We can apply for CE, UL, UN38.3, and other related certifications upon request. The certification fees need to be paid by the customer, but if the order quantity is large enough, the certification fees can be refunded.
Q: How long does it take to fully charge?
A: Standard charging takes about 2.75 hours, while rapid charging takes around 2 hours.
Q: Can this battery be customized?
A: Yes, capacity, dimensions, connectors, and labeling can be customized to meet device requirements.
